Filament Winding Carbon Fiber Fiberglass Composite Pipe

Product Description

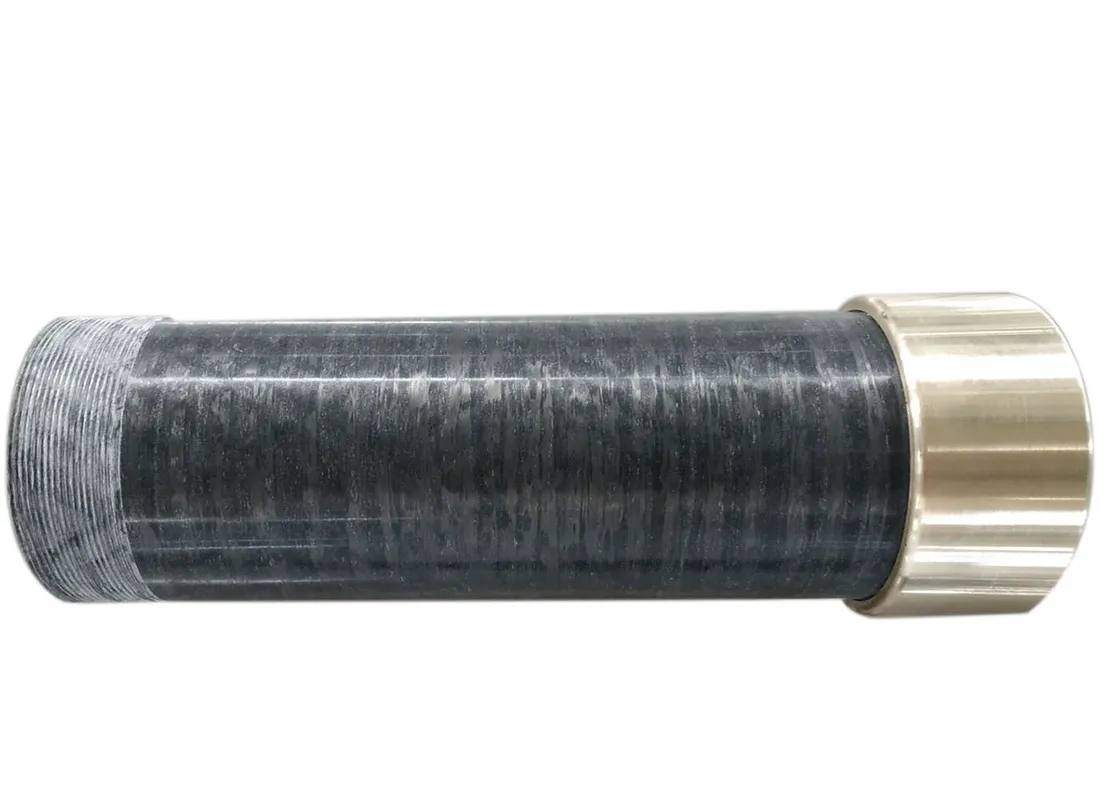

Filament wound Carbon Fiber Fiberglass composite Tube 2.75Inch Cylinder

Application: Cylinder

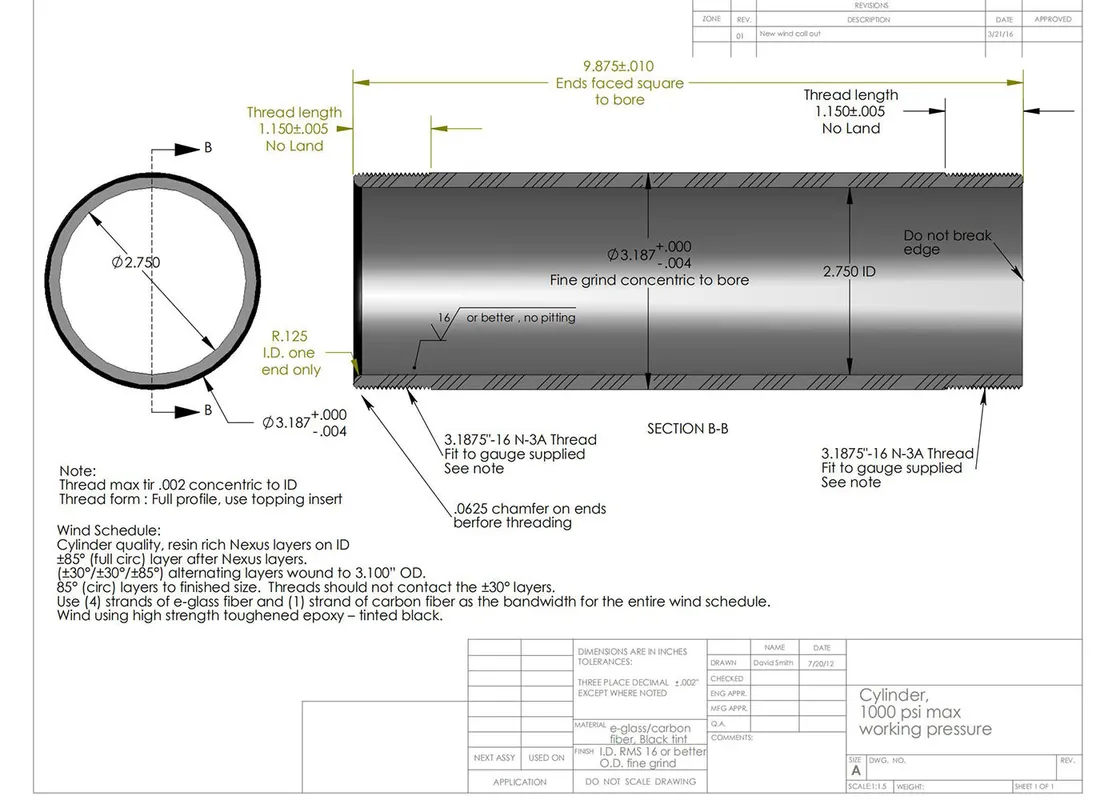

Item name: Cylinder 2.75ID 3.187OD 9.875 Lgth

-1) Material and Production: Cylinder quality, resin rich Nexus layers on ID +/-85

degree(full circ) layer after Nexus layers. (+/-30, +/-30, +/-85 degree) alternating layers

wound to 3.100 inch OD. 85 degree(circ) layers to finished size. Threads should not

contact the +/-30 degree layers. Use (4) strands of e-glass fiber and (1) strands of

carbon fiber as the bandwidth for the entire wind schedule. Wind using high strength

toughened epoxy-tinted black.

2)Size: 2.750 ID (+/-0.002) Inch, 3.187 OD(+0.000/-0.004) Inch, 9.875 Length(+/-0.010)

Inch

3)Thread: 3.1875 Inch-16 N-3A Thread Fit to gauge supplied, 0.625 Inch chamfer on

ends before threading, 1.150(+/-0.005) Inch Length No Land

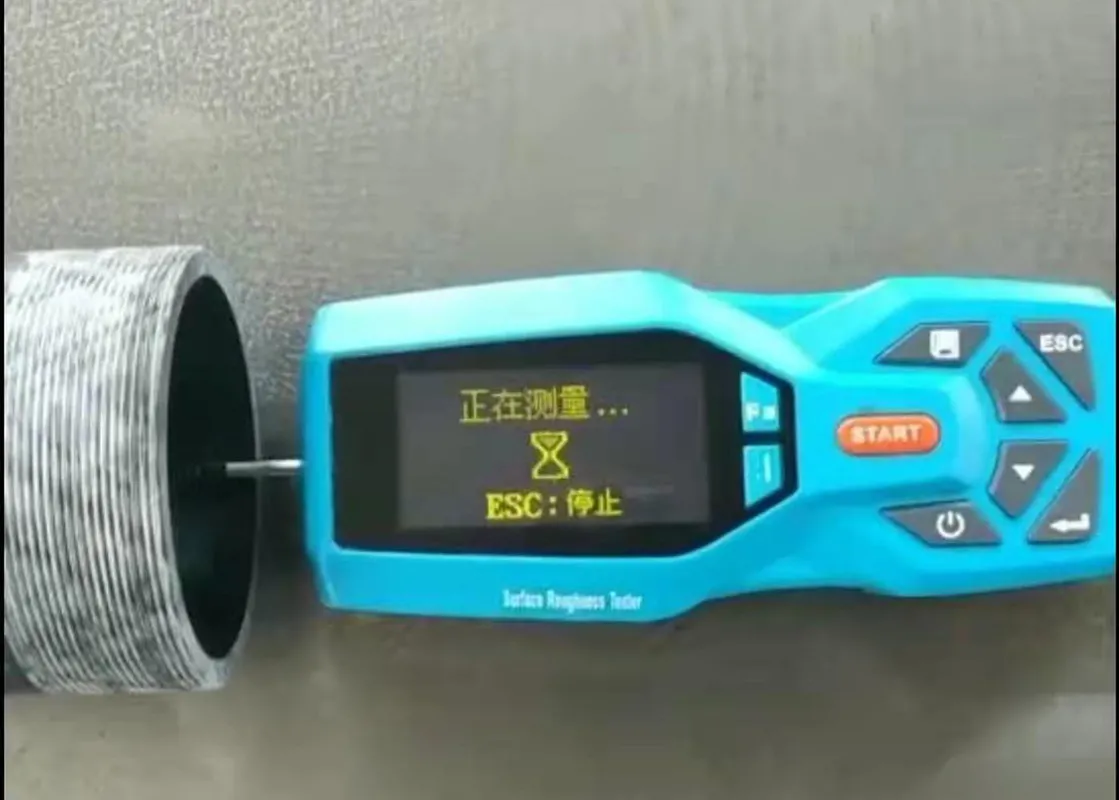

4) Internal Smoothness: RMS16 or better, no pitting

5) Other feature(s): 1) R 0.125 chamfer I.D. one end only

6) Function standard: 1000PSI Max working pressure.
